Tutorial 6: Scalability analysis on million-scale Visium HD datasets

In this tutorial, we challenged STADIM with a million-scale dataset from the 10x Visium HD platform to demonstrate its prowess in handling ultra-high-resolution spatial data.

We download the data via https://www.10xgenomics.com/platforms/visium/product-family/dataset-human-crc.

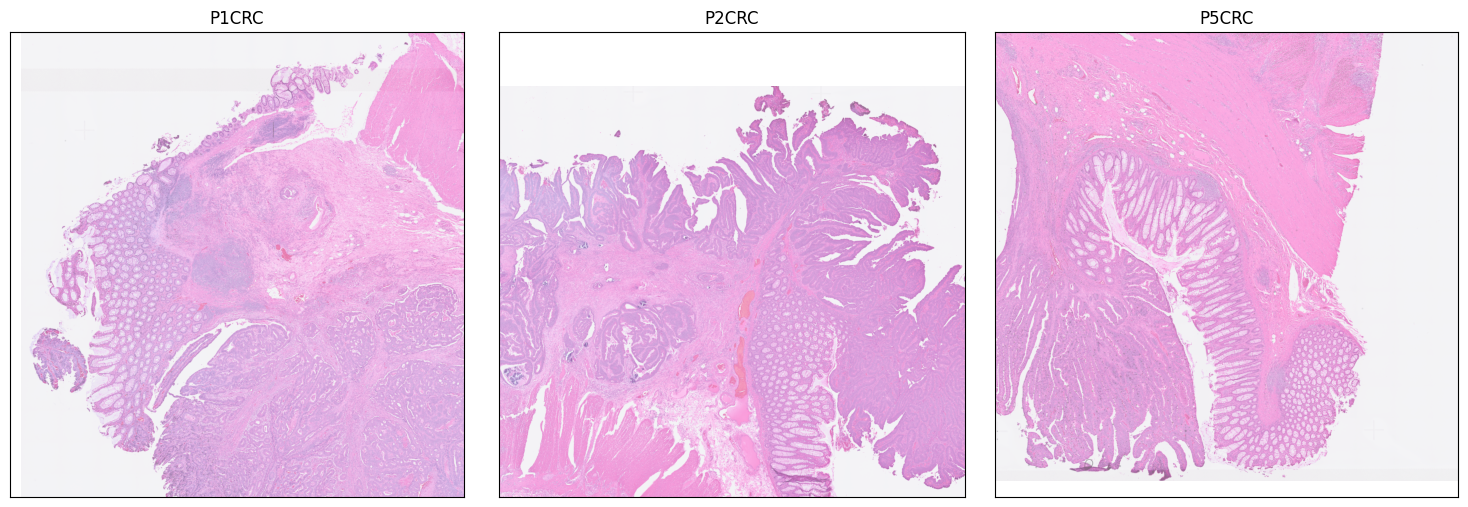

Quick view data

import scanpy as sc
import matplotlib.pyplot as plt
import os

sample_ids = ['P1CRC', 'P2CRC', 'P5CRC']
data_dir = '/data2/xiaost/SODA/Data/CRC_VisiumHD/'

fig, axes = plt.subplots(1, 3, figsize=(15, 5))

for i, s_id in enumerate(sample_ids):
    adata = sc.read_h5ad(os.path.join(data_dir, f'{s_id}.h5ad'))
    print(f'{s_id}')
    print(adata)
    sc.pl.spatial(adata, library_id=s_id, alpha_img=0.6, ax=axes[i], show=False, title=s_id)
    axes[i].set_xlabel('')
    axes[i].set_ylabel('')

plt.tight_layout()
plt.show()

/home/xiaost/anaconda3/envs/stadim/lib/python3.9/site-packages/louvain/__init__.py:54: UserWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.
  from pkg_resources import get_distribution, DistributionNotFound
/home/xiaost/anaconda3/envs/stadim/lib/python3.9/site-packages/anndata/_core/anndata.py:1756: UserWarning: Variable names are not unique. To make them unique, call `.var_names_make_unique`.
  utils.warn_names_duplicates("var")

P1CRC
AnnData object with n_obs × n_vars = 507684 × 18085
    obs: 'in_tissue', 'array_row', 'array_col', 'sample'
    var: 'gene_ids', 'feature_types', 'genome'
    uns: 'spatial'
    obsm: 'spatial'

/home/xiaost/anaconda3/envs/stadim/lib/python3.9/site-packages/anndata/_core/anndata.py:1756: UserWarning: Variable names are not unique. To make them unique, call `.var_names_make_unique`.
  utils.warn_names_duplicates("var")

P2CRC
AnnData object with n_obs × n_vars = 545913 × 18085
    obs: 'in_tissue', 'array_row', 'array_col', 'sample'
    var: 'gene_ids', 'feature_types', 'genome'
    uns: 'spatial'
    obsm: 'spatial'

/home/xiaost/anaconda3/envs/stadim/lib/python3.9/site-packages/anndata/_core/anndata.py:1756: UserWarning: Variable names are not unique. To make them unique, call `.var_names_make_unique`.
  utils.warn_names_duplicates("var")

P5CRC
AnnData object with n_obs × n_vars = 541968 × 18085
    obs: 'in_tissue', 'array_row', 'array_col', 'sample'
    var: 'gene_ids', 'feature_types', 'genome'
    uns: 'spatial'
    obsm: 'spatial'

Run STADIM

Note: For large-scale datasets, we strongly recommend running STADIM as a background process via the ``stadim`` command-line interface.

You can call the STADIM command directly in your terminal:

nohup stadim --input "./P1CRC.h5ad" "./P2CRC.h5ad" "./P5CRC.h5ad" --save_dir ./CRC_VisiumHD_test --device "cuda:0" --monitor --seed 2026 --min_genes 50 --min_cells 10 --knn_c 30 --knn_e 70 --mnn_n 100 > ./CRC_VisiumHD_test.log 2>&1 &

and load the results into your Python environment for downstream analysis.

import anndata as ad

adata = ad.read_h5ad('/CRC_VisiumHD_test/sdata.h5ad')

## The denoised gene expressionis is stored in adata.layers['STADIM']
print(adata)

Note: For datasets exceeding a size threshold of 10^10, denoised expression matrices are not stored to reduce memory and storage overhead. The learned latent representations remain available in ``adata.obsm[‘STADIM’]``.

This dataset contained 1,595,565 spots × 18,085 genes before filtering and 1,284,457 spots × 18,065 genes after filtering.

STADIM required approximately 560.8 minutes runtime, 341 GB RAM, and 2.9 GB GPU memory.

Here, we directly load the pre-trained model and STADIM results to illustrate how to extract denoised data for specific gene sets of interest.

import os
import gc
import torch
import numpy as np
import scanpy as sc
from scipy.sparse import issparse

# ===================== 1. User settings =====================

device = "cuda:0"

model_path = "/path/to/trained_model.pth"
adata_path = "/path/to/sdata.h5ad"
save_path = "/path/to/interest_gene_set_denoised.h5ad"

input_layer = "X_norm"
batch_key = "sample"

gene_sets = {
    'Tumor': ['CEACAM6', 'MYC', 'LCN2', 'CLDN4', 'REG1A', 'MUC17'],
    'Epithelial': ['PIGR', 'OLFM4', 'MUC12', 'SELENOP'],
    'Stroma': ['COL1A1', 'COL3A1', 'DES', 'TAGLN', 'DCN', 'SFRP2'],
    'Vasculature': ['PLVAP', 'ESAM', 'PECAM1', 'VWF'],
    'Immune': ['CD74', 'TRAC', 'IGKC', 'JCHAIN', 'SPP1', 'CD68']
}

eval_batch_size = 4096
loss_mode = "nb"
seed = 2026

# ===================== 2. Load data =====================

adata = sc.read_h5ad(adata_path)
X_input = adata.layers[input_layer]

# Merge and filter genes of interest
genes_of_interest = sorted(set(g for genes in gene_sets.values() for g in genes))
valid_genes = [g for g in genes_of_interest if g in adata.var_names]
gene_indices = [adata.var_names.get_loc(g) for g in valid_genes]

print(f"Requested genes: {len(genes_of_interest)}")
print(f"Valid genes found: {len(valid_genes)}")

# Batch information
batches = np.asarray(adata.obs[batch_key].astype("category").cat.codes)
n_batches = len(np.unique(batches))
max_val = float(X_input.max())

# ===================== 3. Load trained model =====================

import stadim

model = stadim.STADIM(input_dim=adata.n_vars, n_batches=n_batches,
                      encoder_layers=[512, 256, 64], decoder_layers=[1000],distribution=loss_mode, seed=seed)
model.load_state_dict(torch.load(model_path, map_location=device))
model.to(device)
model.eval()

# ===================== 4. Denoise selected genes only =====================

n_cells = adata.n_obs
n_target_genes = len(valid_genes)

denoised_genes = np.zeros((n_cells, n_target_genes), dtype=np.float32)

print("Generating denoised expression for selected genes...")

with torch.no_grad():
    for start_idx in range(0, n_cells, eval_batch_size):
        end_idx = min(start_idx + eval_batch_size, n_cells)

        batch_raw = X_input[start_idx:end_idx]
        if issparse(batch_raw):
            batch_raw = batch_raw.toarray()

        input_tensor = torch.from_numpy(batch_raw).float().to(device)
        current_bs = input_tensor.shape[0]

        # Marginalization over all batches
        chunk_sum = np.zeros((current_bs, n_target_genes), dtype=np.float32)

        for b_id in range(n_batches):
            fake_batch_idx = torch.full((current_bs,), b_id, dtype=torch.long, device=device)

            if loss_mode == "nb":
                _, output, _ = model(input_tensor, batch_index=fake_batch_idx)
            else:
                _, output, _, _ = model(input_tensor, batch_index=fake_batch_idx)

            chunk_sum += np.clip(output[:, gene_indices].cpu().numpy(), a_min=None, a_max=max_val)

        denoised_genes[start_idx:end_idx] = chunk_sum / n_batches

        del input_tensor, fake_batch_idx, output
        torch.cuda.empty_cache()

        if start_idx % (eval_batch_size * 10) == 0:
            print(f"Processed {end_idx}/{n_cells} cells")

gc.collect()
torch.cuda.empty_cache()

# ===================== 5. Save as AnnData with layers['STADIM'] =====================

adata_subset = adata[:, valid_genes].copy()
adata_subset.layers["STADIM"] = denoised_genes

os.makedirs(os.path.dirname(save_path), exist_ok=True)
adata_subset.write_h5ad(save_path)

print(f"Saved denoised gene-set data to: {save_path}")
print("Denoised data is available at: adata_subset.layers['STADIM']")
